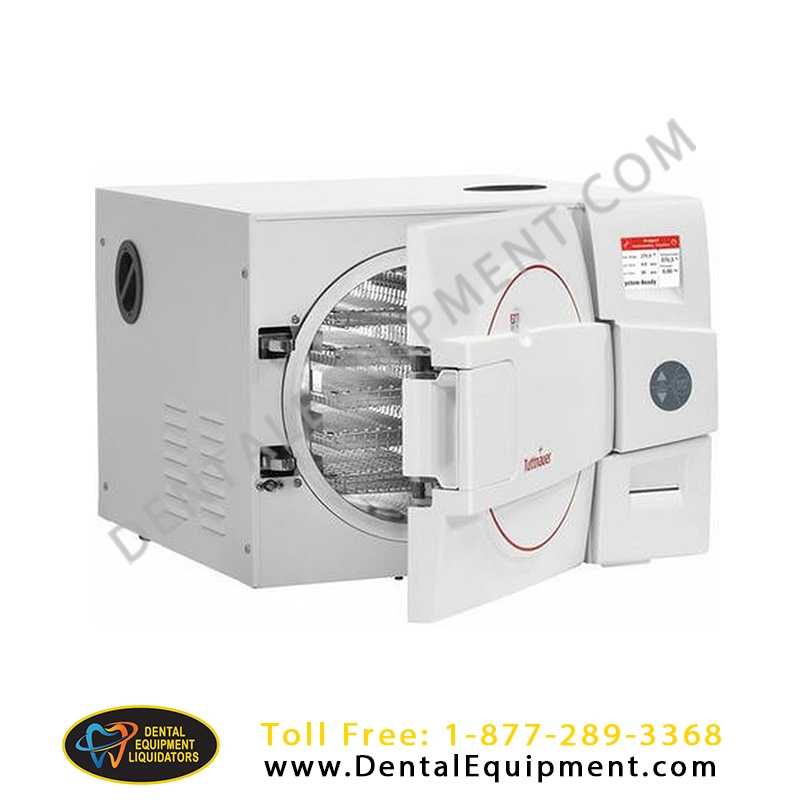

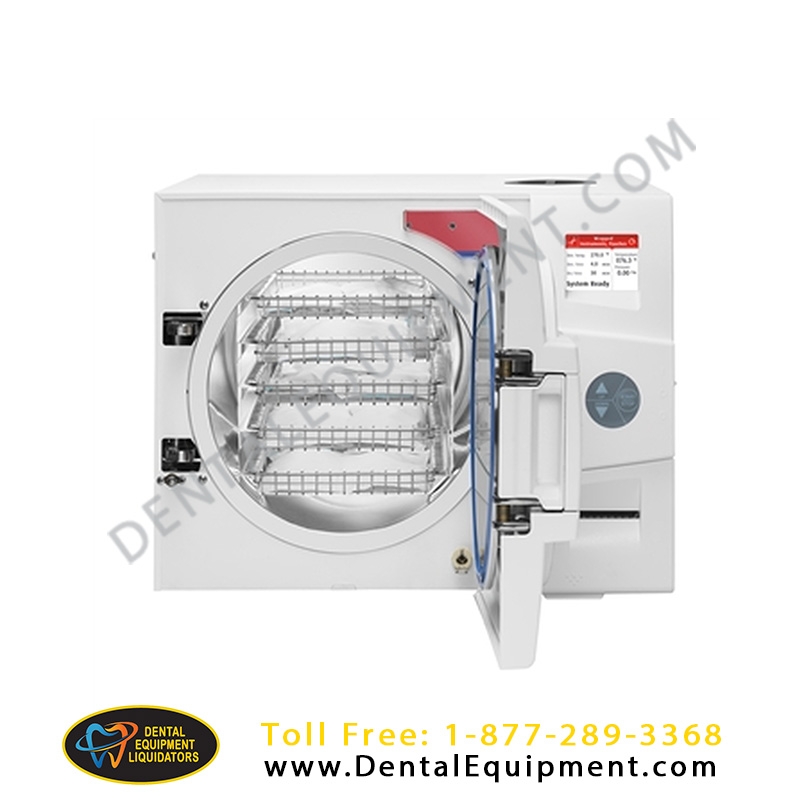

Tuttnauer EZ11PLUS Automatic Autoclave *New*
Warranty: 2 Years Parts & Labor
Images Depict Optional Printer - EZ11PLUS-P
Ergonomically friendly EZGlide door features a sleek modern look and effortless opening and closing.
- Chamber Dimension 11" diameter X 19.8"
- Overall Dimensions: 24.8" x 20.9" x 17.3"
- Volume: 7.5 gal
- Standard Cassette Capacity: 4 Full & 4 Half
- No. of Trays: 5
- Voltage (V): 120V
* EZ11Plus requires a minimum tabletop depth of 22”
Use the 5 full sized trays for packs/pouches
Use the tray rack (included) to accommodate 4 full plus 4 half sized cassettes…no additional cassette rack to buy!
One pouch rack is included with each EZ11Plus.

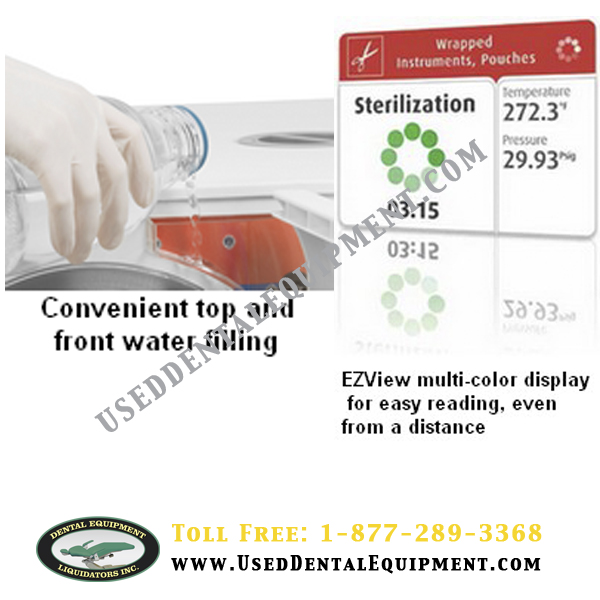

Innovative EZView Multi-Color Display offers real time cycle information that is easy to read, even from a distance. The EZView displays cycle parameters, temperature, and pressure in the chamber. During a cycle each stage is displayed with an active color wheel and text.
Closed door drying, meaning the door remains closed through the dry cycle to maintain sterility and ensure efficient drying. A high efficiency air pump circulates filtered air through the chamber for fast drying. 0.2µ HEPA filter (replaceable).
Front or top water fill options: accessible EZFill front or top water fill option to enable easier filling of the reservoir.
USB Port enables users to easily transfer cycle data via a flash drive to a PC.
Network Port allows for connection to a local network to provide remote monitoring of the system when used with optional RPCR Software. Network port is located in the rear of the unit.
Dynamic Air Removal Technology to effectively remove air from the chamber.
Designed to meet the most current sterilization standards ANSI/AAMI ST55.
Comprehensive 2 year parts & labor warranty and 10 year chamber warranty.
Optional internal printer documents: date, time, temperature and pressure.
EZPlus is easy to operate with 4 FDA cleared sterilization programs. Additionally, there are 2 customizable sterilization programs, A and B**.
A convenient Chamber Brite cleaning program simplifies maintenance when utilizing Chamber Brite powdered autoclave cleaner.
- Standard Unwrapped Cycle Time
- Without Dry: 27 mins
- With Dry: 28 mins
- Standard Wrapped Cycle Time
- Without Dry: 25 mins
- With Dry: 55 mins
Your Box Will Contain:
A new Tuttnauer EZ11PLUS autoclave, power cord, 3 trays, sample box of Chamberbrite autoclave cleaner, tray holder, drain tube, manual and two year warranty card
*In order to perform proper sterilization cycles, the following table shows important loading guidelines.
When an autoclave is overloaded, chances are the sterilization will have to be repeated.
|MODEL||SOLID LOAD||POROUS LOAD|
|1730||6.0 LBS.||2 LBS.|
|2340||7.0 LBS.||2.3 LBS.|
|2540M/MK||8.8 LBS.||2.9 LBS.|
|3870M/EA||14.0 LBS.||4.7 LBS.|
|EZ9||7.0 LBS.||2.3 LBS.|
|EZ10/10K||8.8 LBS.||2.9 LBS.|
|EZ9PLUS||9.0 LBS.||1.5 LBS.|
|EZ11PLUS||15.0 LBS.||1.7 LBS.||*This Listing Specs|
