DEL Built In LED Curing Light *New*

LED Built-in Curing Light System (LED 5W installed in dental unit)

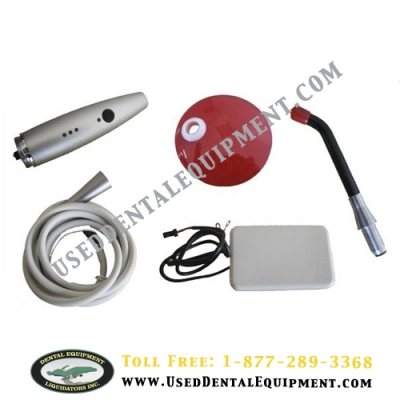

Package Includes: Turbo Light Guide, Protective Eye-Shield, Built-in Power Transformer, User's Manual

Curing Mode Light Indicators:
Fast curing (green LED color): Time setting 20 seconds (every 10 seconds, it sounds once)
Pulse curing (red LED color): Interrupt radiating (every 10 seconds, it sounds once)
Step curing (orange LED color): Soft start for 10 seconds from 0 to full power, then full power during the later 10 seconds
Curing Status Light Indicators:
Green LED color – Normal
Red Flashing LED color – LED curing light handpiece is over temperature

Specifications:
Wavelength Range: 430-490 nm
Light Intensity: 1,250 mW / cm²
Power Consumption: 5 W LED

Range of Light (in nm) -  430 - 490 nm
Light Intensity at the Tip (mW/cm2) - 1200 mW
Battery Life - 200 cycles at STANDARD mode, 10 seconds per cycle, 135 cycles at STANDARD mode, 20 seconds per cycle

Charging Time to Complete - 5 Hours
Battery Type - Lithium Ion
Cradle Battery - Rechargeable
Operating Temperature 15 - 30°C (60 - 86°F); Unit turns off automatically when the temperature at the wand tip reaches 48° C

Power Input, Curing Light - 5.2 VDC @ 1.0 A
Power Input, Power Supply - 90 - 240 VAC @ 50 - 60 Hz
Pulse Rate - 10 Hz
Pulse Duty Cycle - 50%
Storage and Transport Conditions - 0 - 40°C (32 - 104°F), 0 - 100% RH", 1000 to + 9000 meters elevation
