Midmark M7 SpeedClave Manual Autoclave Sterilizer *Refurbished*

SKU: 1865
Stock: 1
Warranty: 1 Year Parts, 90 Days Labor
Price: $2,495.00

Qty: - +

Product Description:

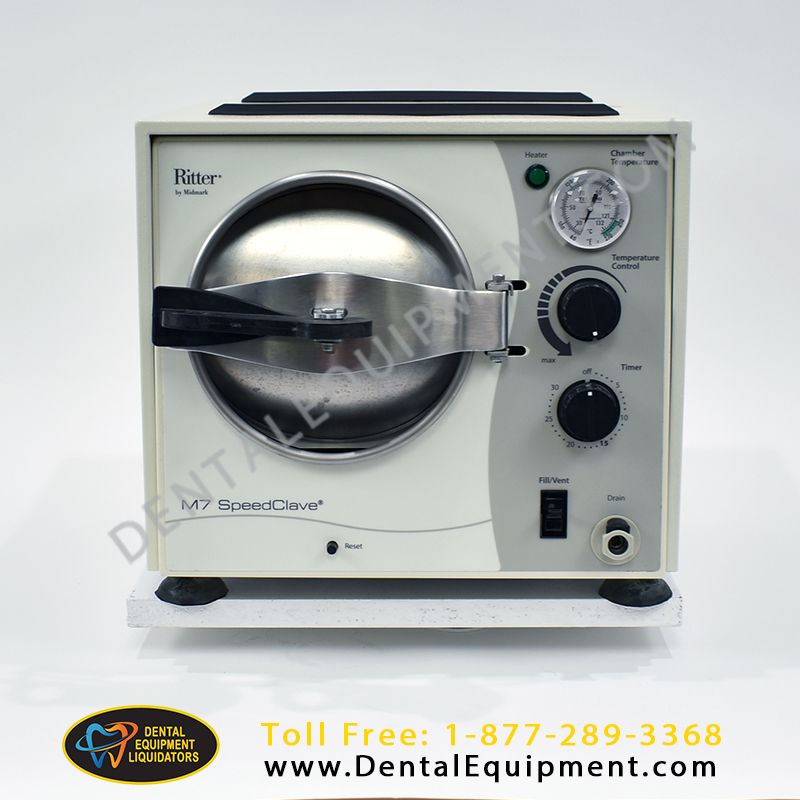

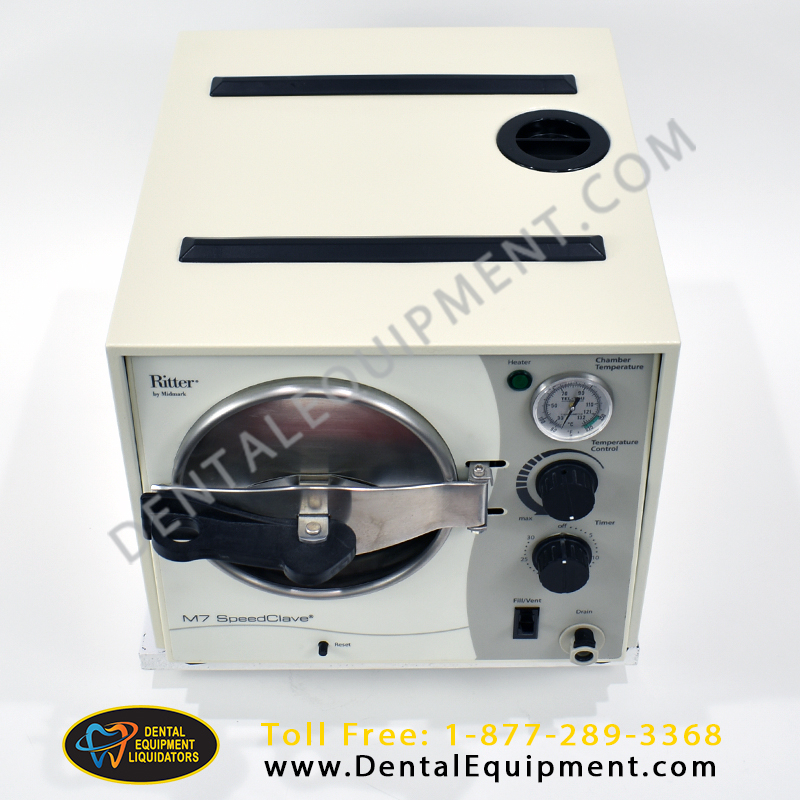

The Ritter by Midmark M7 SpeedClave Manual Autoclave offers simple three-prong, plug-in operation for standard electrical outlets. No plumbing is required as the Ritter by Midmark M7 SpeedClave Manual Autoclave has its own reservoir for distilled or de-mineralized water. With its front draining feature, it’s easy to clean and maintain. And all controls and information are on the front and easily accessible to the operator. Low water cutout switch prevents “dry burning”. The Ritter M7 will operate only when there is enough water present. This prolongs the life of the heating element.

Reset button saves time. It restores operation after the cutout switch is tripped and you have added water. The cycle timer regulates steam time from 0 to 30 minutes and automatically turns the Ritter by Midmark M7 SpeedClave Manual Autoclave off when the sterilization cycle is complete. This prevents over-sterilization, which can reduce the service life of your instruments.

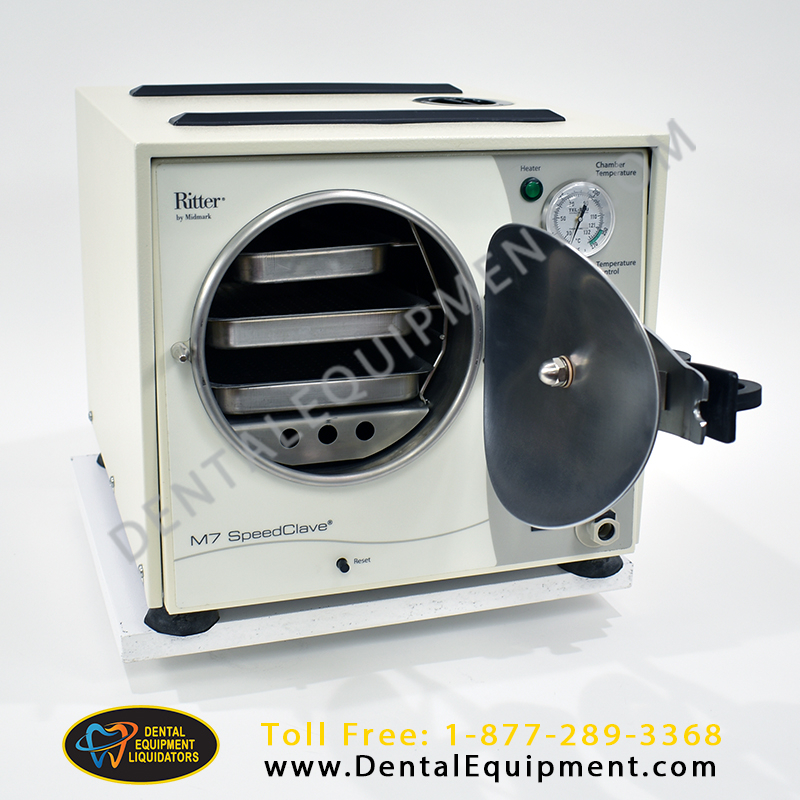

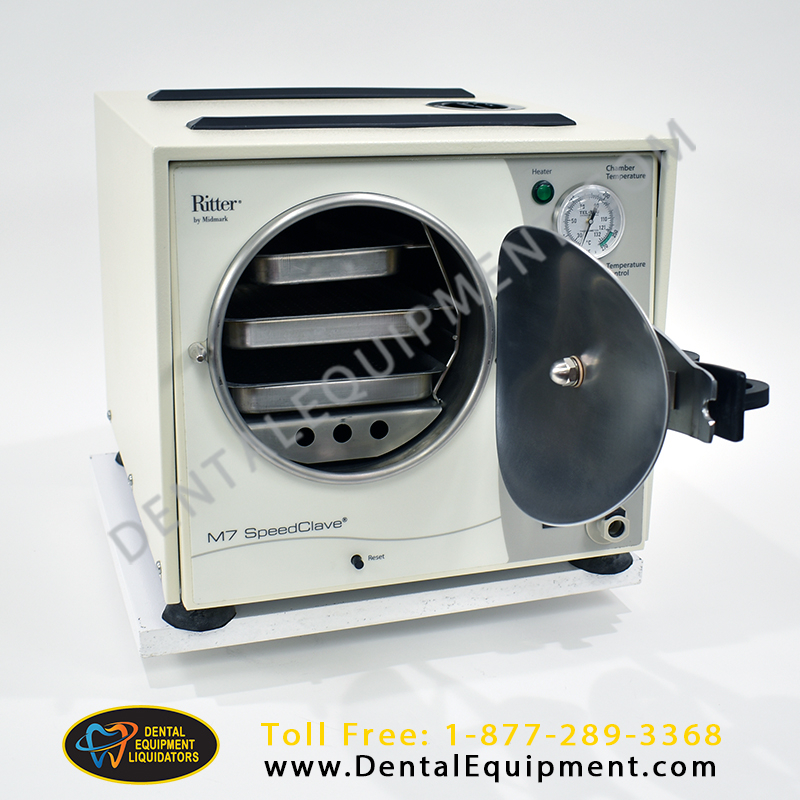

A safety door protects the operator. It automatically seals when pressurized and will not allow the operator to open the door until the chamber is safely depressurized. The temperature regulator allows the operator to preset the temperature at a desired setting between 250°F (121°C) and 270°F (132°C). This control, acting as a thermostat, cycles the heating element on and off. A temperature gauge indicates the temperature inside the chamber. The gauge is graduated from 80°F (26.7°C) to 270°F (132°C).

A pilot light is on when the heater is on. It cycles off and on during normal cycle.

Overall length w/ plug: 19″ (48.3 cm)
Overall width: 14″ (35.6 cm)
Overall height: 13″ (33 cm)

Countertop area: Minimum depth: 16.5″ (41.9 cm)

7.5″ diameter (19.1 cm)
15″ depth (38.1 cm)
2.4 gal. usable volume (9.0 liters)

Water reservoir capacity:
1.31 gal. (4.9 liters)

Two large – 12″ L x 5.62″ W x .88″ D (30.5 x 14.3 x 2.2 cm)
One small – 12″ L x 4.12″ W x .88″ D (30.5 x 10.5 x 2.2 cm)

Unit weight:
30 lbs. (13.6 kg)

120 VAC, 60 Hz, 10 AMPS
120 VAC has 1136-watt tubular immersion heater
UL & CUL Listed
CSA Certified
220-240 VAC, 50 Hz, 5 AMPS
100 VAC, 60 Hz, 12 AMPS

Use on laminate, stainless steel or stone surfaces. Allow 2.5″ (6.4 cm) on sides and rear and 12″ (30.5 cm) above, to allow space to fill the reservoir and for cooling processed trays.
