Dry Dental Vacuum System Dual Motor 1-12 Users *New*

COMPLETELY WATER-LESS & COMPLETELY OIL-LESS DUAL 1-12 USER DRY VACUUM SYSTEM

DRY VACUUM SYSTEMS REQUIRE 2" DIAMETER VACUUM PIPING. IF YOU HAVE SMALLER DIAMETER VACUUM PIPING YOU MAY NEED TO MODIFY YOUR CURRENT SETUP.

Welcome to worry free suction, the second most popular vacuum in our line-up of ultra-reliable utility room equipment.  Nothing is left to chance during the manufacturing process of these state-of-the-art dry vacuums. From the single-part engineered motor, to the easy-to-replace 10-micron filter located directly in the front of these units… Peace of mind is what you get with the purchase of every Sierra Dental Equipment vacuum system.

The first thing you’ll notice upon start-up of your dry vacuum system, is how unbelievably quiet this dry vacuum is; it tip-toes in at only 64 decibels, eliminating “equipment room noise” all together, which means your waiting room will be a more comfortable place for patients to relax, before being seen.

Once you get over how quiet your unit is, you’ll quickly be made aware of it’s awesome power! Equipped with two high-quality motors which produce a whopping 3.5 horsepower combined, it creates an astounding 170 CFM, which is more than capable of supporting 12 users simultaneously with no noticeable drop in suction. Even doctors with smaller practices benefit tremendously from the system, by alternating between vacuums every other day, prolonging the life of their dry vacuum system. Not to mention, ZERO down time in the event of unforeseen mechanical mishaps.

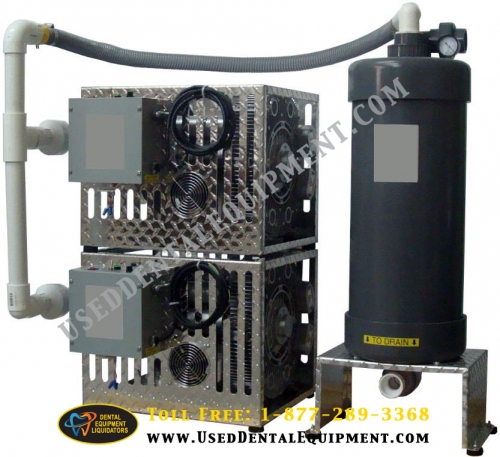

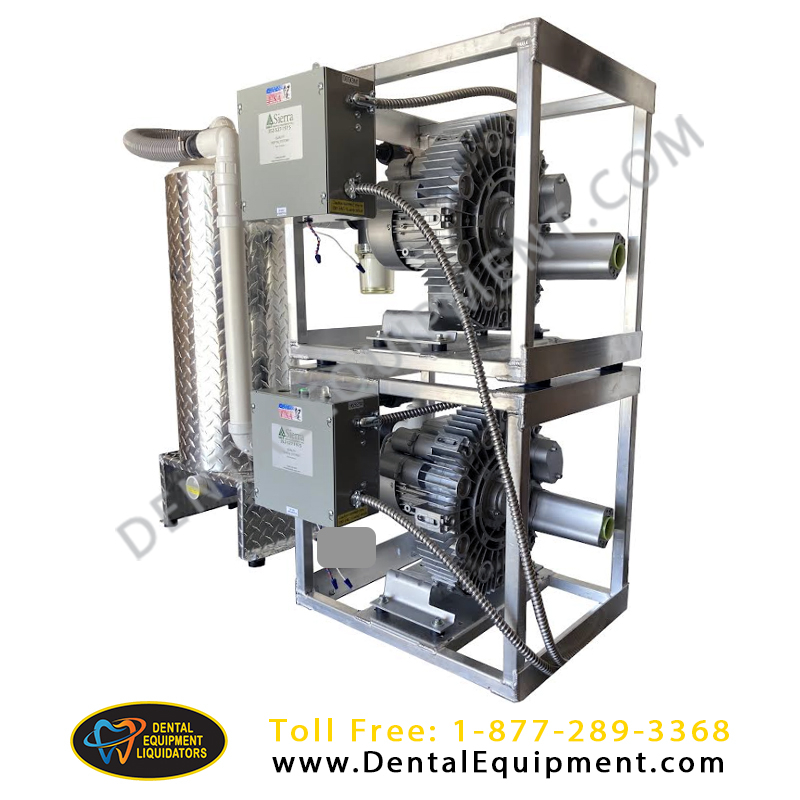

The vacuum system consists of three pieces; The separator tank, and two motor assemblies. These can be installed in several different configurations, for example; Installing the motors in a completely different location than the collection tank. The tank is fully automatic and drains when the vacuum is turned off, thanks to gravity. If the tank happens to fill up during operation, (no reports to date) a seal is created at the top of the tank, allowing gravity to take effect and drain the tank. At which point, you turn off your Tru-Vac to “break” the seal, then simply turn it back on to continue operating.

Perhaps one of the most important features of the system, is that each of its motors only have ONE moving part! What does this mean for you? Two things; Less of a chance for motor failure and less maintenance required (quarterly filter changes).

Specifications
Capacity: Up to 12 Users
Flow Rate: 170 CFM
Noise Level: 64 dB
Vacuum (“Hg): 8.5” Hg
Chassis Footprint: 21”x 20”x 32” Chassis Weight: 170 lbs
Power: 4.8 HP / 2.4 HP x 2
Voltage: 115 / 230 Volt AC
Current: 10 Amps x 2**
Tank Size: 40” Tall / 12 Gal.
Tank Weight: 43 lbs
Completely Water-Less
Completely Oil-Less

**Direct AC line required for each motor**

This Item Freight Ships on Pallet
