Portable Handheld Mobile Dental X-Ray *New*

SKU: 2805
Stock: 10
Price:
$7,495.00

OPTIONAL:   Extended 5 Year Warranty (Add $595.00)
Qty: - +

FDA Approved

Comparable to NOMAD but nearly half the cost!

Perfect for Veterinary, Humanitarian or Missionary Work

Includes 2 Year Warranty Against Manufacture Defects Only

We recommend the Optional Purchase of Extended 5 Year Warranty.  It covers any type of damage to unit - user error, dropping etc. (full details listed below)

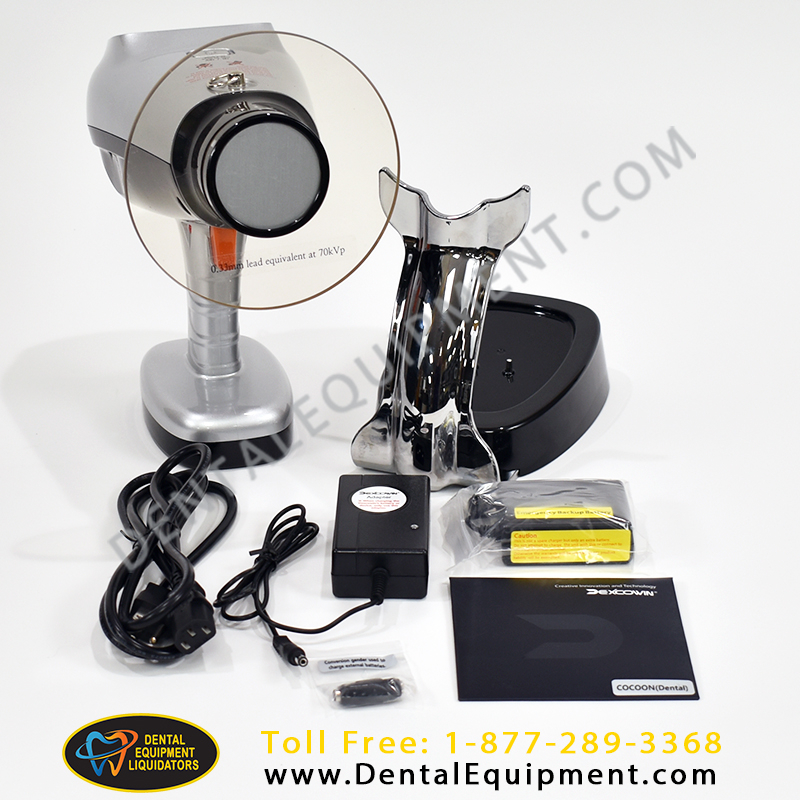

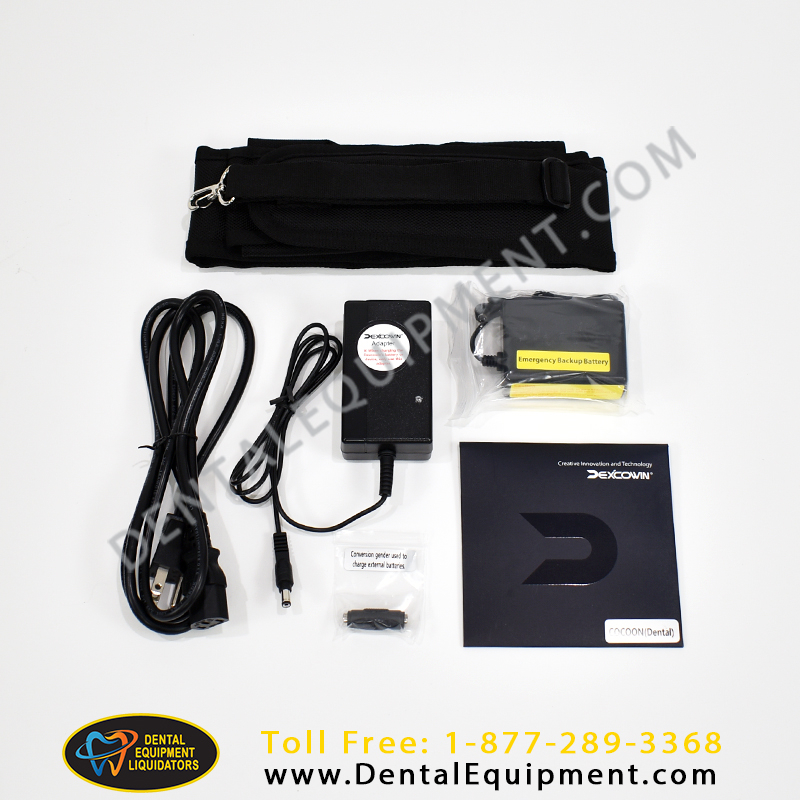

Includes:

  • Unit with Internal Battery
  • Back-up Battery
  • Charger
  • Charging Cradle
  • Neck Strap
  • Power Adapter

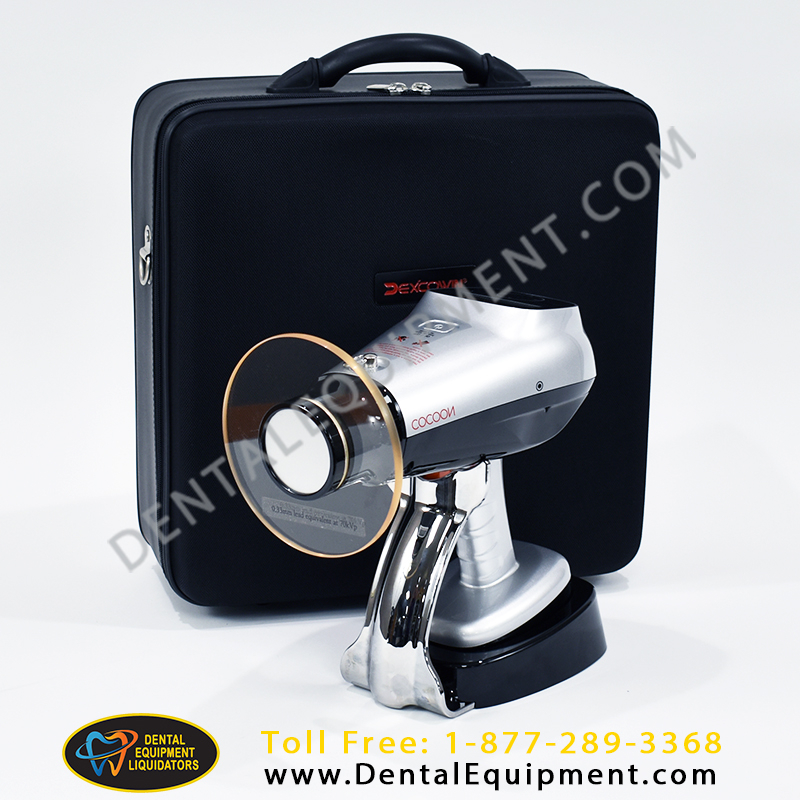

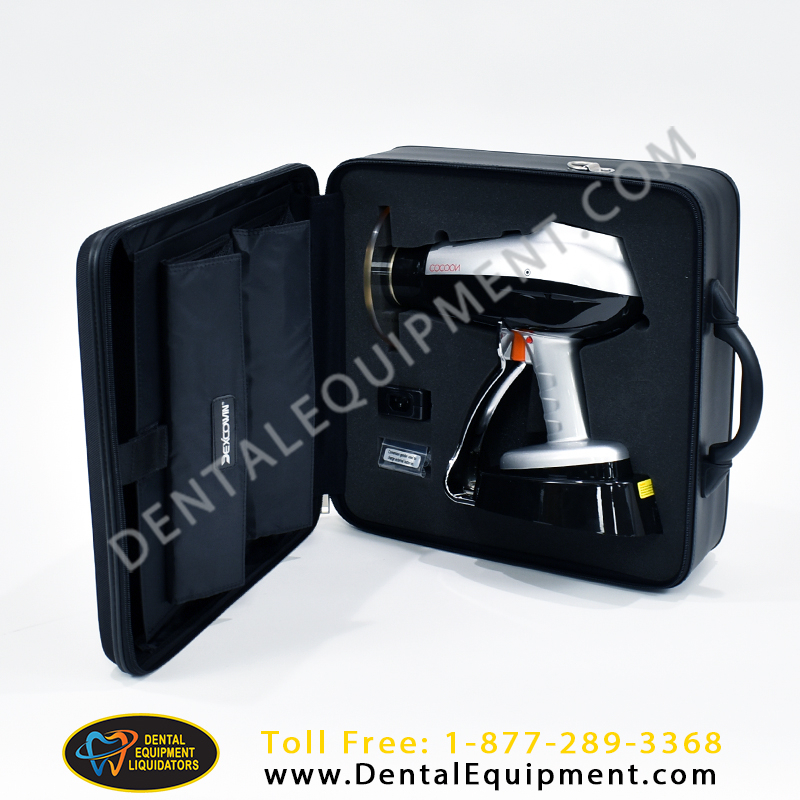

  • Soft Side Carry Case with Molded Foam
  • Instructions

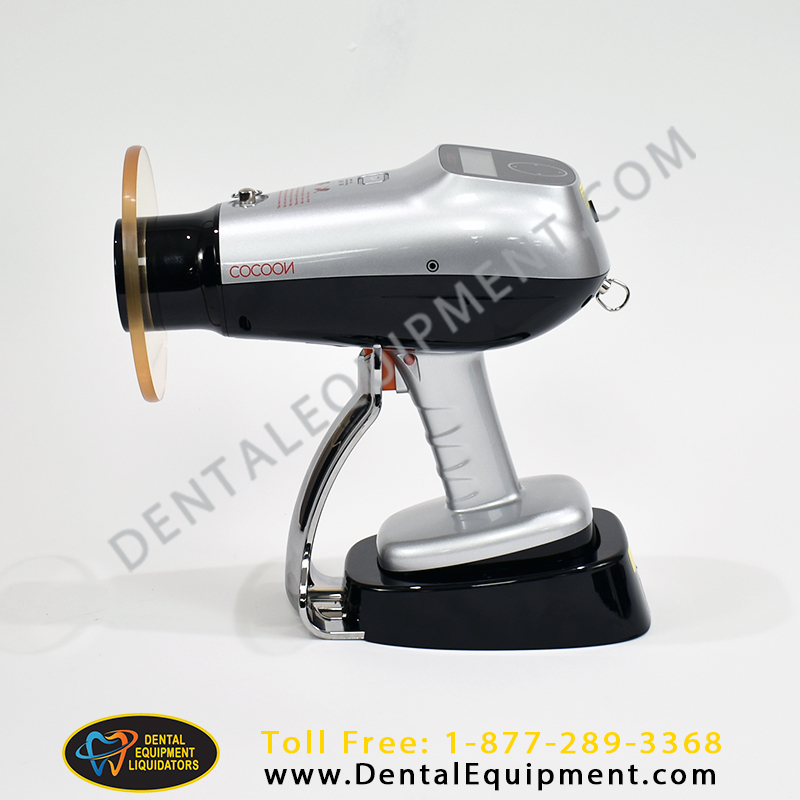

The camera shape design allows it to be held by one hand

Easily finish an FMX in just a few minutes.

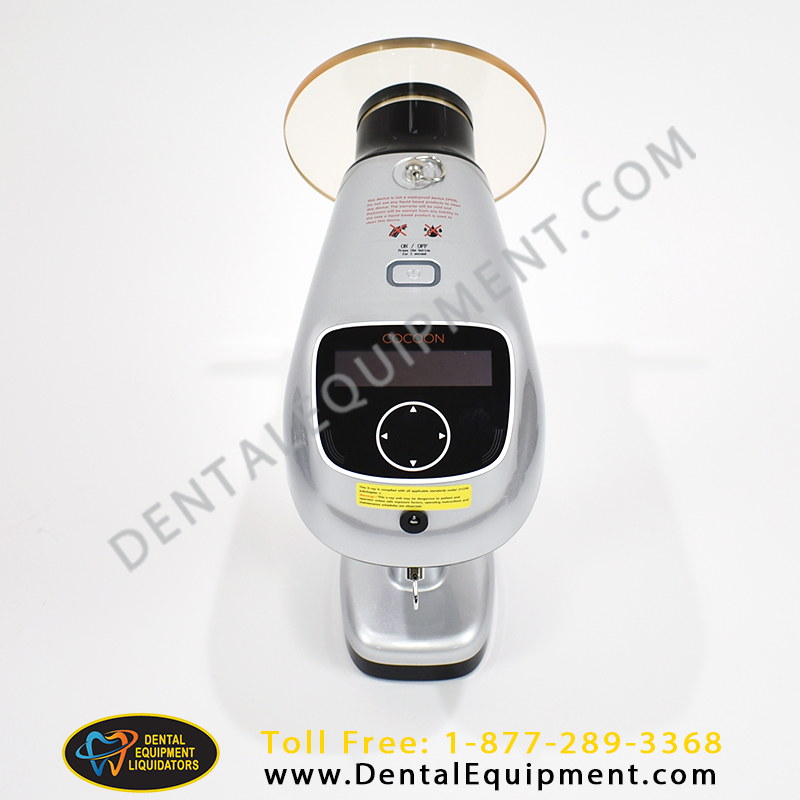

Easy to use display and control function and comes equipped with Voice Prompts.

Long-Life LI Battery, the best battery technology on the market today, taking over 500 x-ray shots on a single battery charge compared to only 100 with other systems.

Features & Benefits:

  • LIGHTWEIGHT– Less then 5lbs.

  • SAFE – ZERO leakage design makes MaxRay Cocoon safe.

  • RECHARGEABLE – One charge….takes hundreds of x-rays.

  • ECONOMICAL – One MaxRay Cocoon unit does the work of multiple x-rays systems. Improves your workflow in your office, its fast and convenient.

  • PRACTICAL – Handheld design allows operator to stay with the patient during procedure…It’s like taking a picture!

  • SIMPLE – No big bulky arms, backing plates for walls, special cabinets or costly electrical hookups.

  • VERSATILE – The MaxRay Cocoon Portable Handheld Unit can go with you anywhere. From one office to another!

Technical Specs:

  • Available Colors: White

  • Tube Voltage: 70kV (fixed)

  • Tube Current: 1.7mA (fixed)

  • X-Ray Tube Focal Size: 0.4mm

  • Cooling system: Oil cooling

  • Total filtration: 2.3 mm Al

  • Inherent filtration: 0.8mm, fixed added filter :0.7 mm Aluminum)

  • Target angle: 19 ~ 20°

  • Time Set-up function: 0.05 ~ 1.35 sec (Film/Digital included)

  • Distance to target: >20cm

  • X-ray field: 50 ? (round-style)

  • Size of main body: 139(W) x 163.5(H) x 66.5mm(D)

  • Weight of body: 4.8lbs

OPTIONAL 5 YEAR EXTENDED WARRANTY PROGRAM:

Must be purchased at time of sale or no later than 30 days after receipt of purchase

Covers any type of damage to unit - user error, dropping etc.

Provides for a complimentary loaner unit shipped overnight to your office.  Unit is repaired free of charge less the graduated deductible (shown below)

Not in addition to basic manufactures defect warranty. When purchasing the extended warranty, it overrides the basic warranty and is in effect for a 5 year period - Cannot be transferred

Year 1 = no deductible / repaired free of charge

Year 2 = $125 deductible / Charged a maximum of $125

Year 3 = $180 deductible / Charged a maximum of $180

Year 4 = $275 deductible / Charged a maximum of $275

Year 5 = $350 deductible / Charged a maximum of $350
