Flowmeter System Porter Digital MDM Flush Panel System *New*

MF DATE 2022/2023

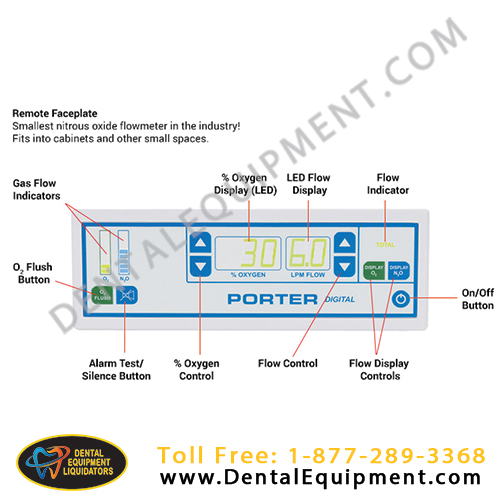

Porter’s Digital MDM N2O sedation flowmeter features an extremely small footprint and a remote faceplate, allowing the control box to be located wherever space is available.

The Digital MDM features:

• The smallest flush mount flowmeter in the industry at only 8” X 3”
• Simple installation with multiple options including Mounting Kit for Flush, Surface, Wall, or Under Counter/Hutch
• Brightly lit digital display and digital flow tubes
• Audible alarms

Does Not Include Gas Cylinders

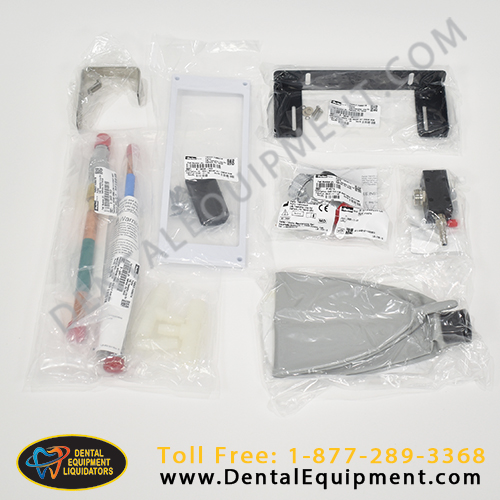

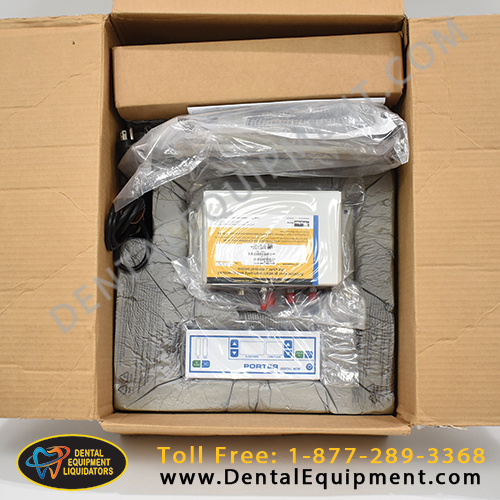

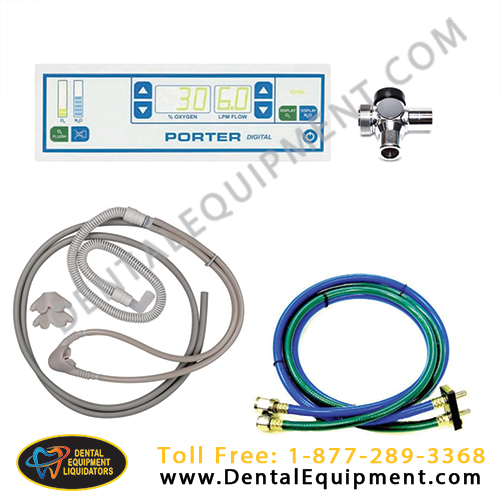

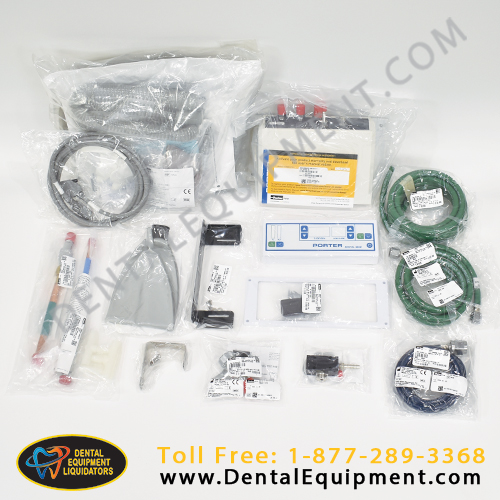

Porter MDM COMPLETE KIT  Flowmeter Includes:

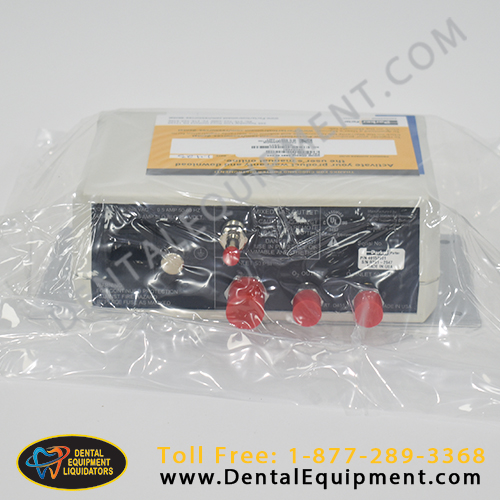

1 – Digital MDM Base Unit

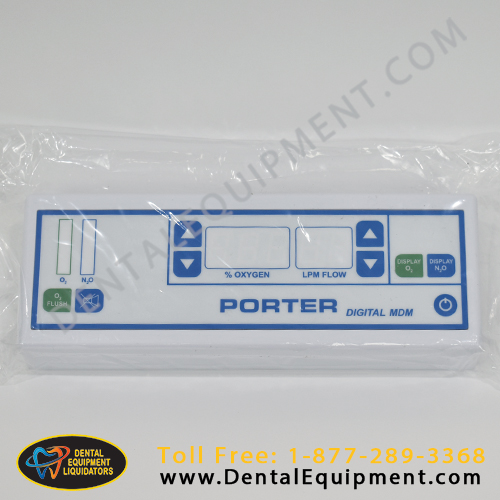

1 – Digital MDM Mixer Control Unit Front Panel (DIM: 8" x 3")

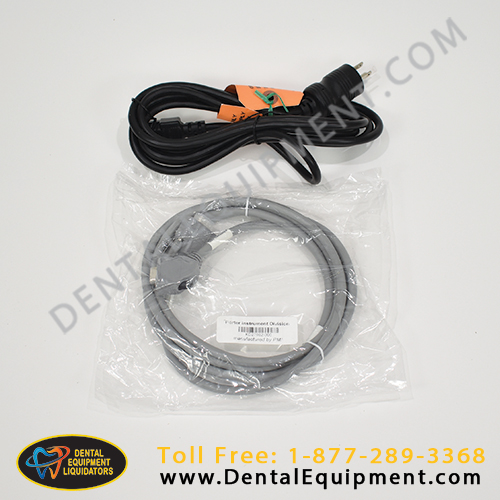

1 – Interface Cable

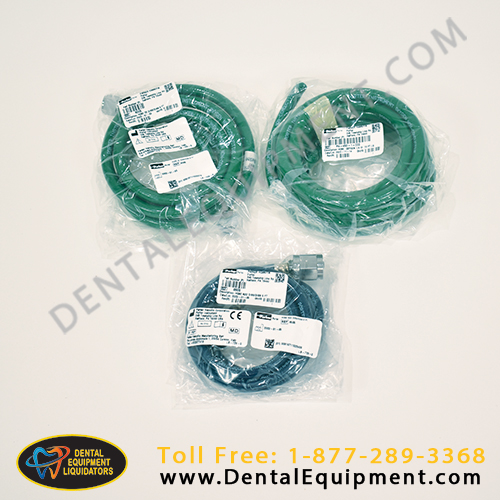

1 – Hose O2 DISS/DISS 5 FT

1 – Hose NO2 DISS/DISS 5 FT

1 – Hose OXYGEN ¼ I 10 FT

1 - O2 DISS Check Valve

1 - N2O DISS DMND Shut-off Valve

1 – AVS Bag Tee for MXR

1 - Remote Bag Tee Mounting Block Assy

1 – In-Wall Mount Kit

1 – Under Cabinet Mount Kit

1 - Porter 5056 Coaxial Replacement Tubing Assembly 27"

1 – 3 Liter Breathing Bag

1 - Adult Hood Assy

1 – Corrugated Tubing 3 FT

1 – Elbow Adapter

1 - Power Cord

Operations and Installation Manual

Installation Template
