Manifold System O2/NO2 Complete Automatic Wall Mount System *New*

This System Includes:

Defender Automatic Changeover Manifold System with Alarm & Pre-Install Kit

Defender Zone Valve Shut-Off

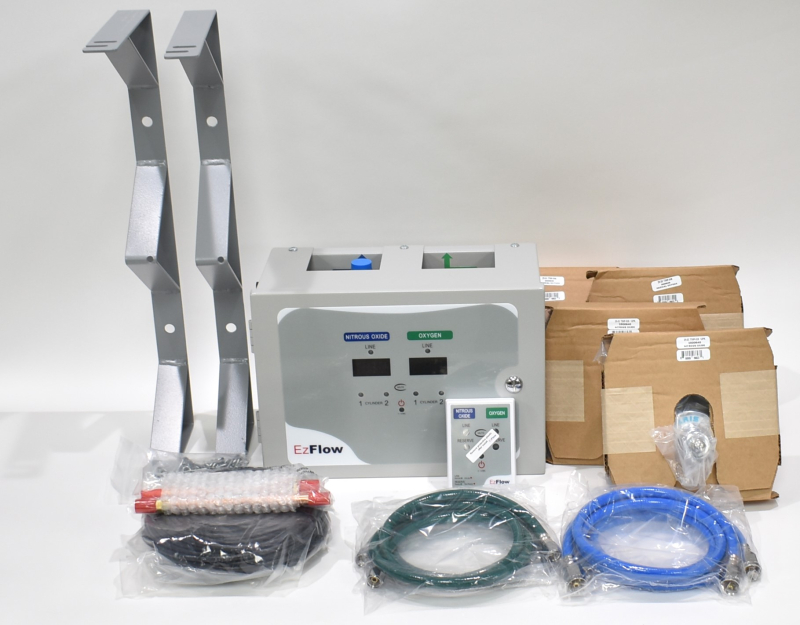

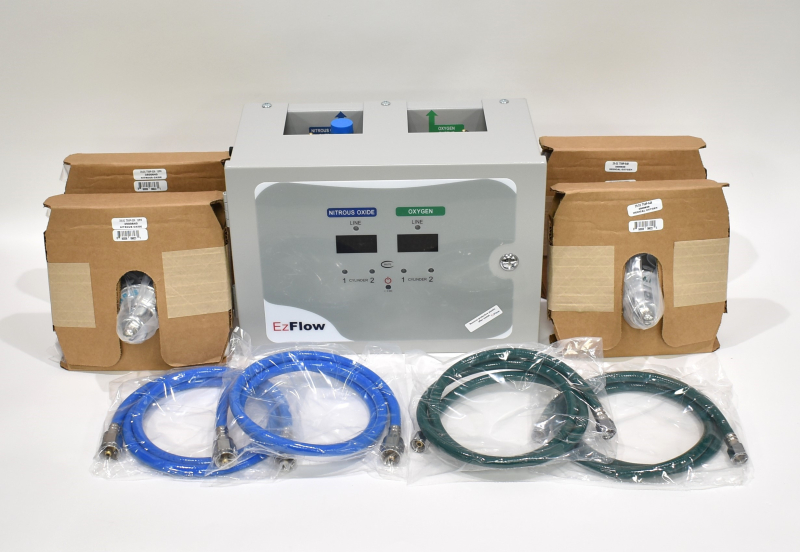

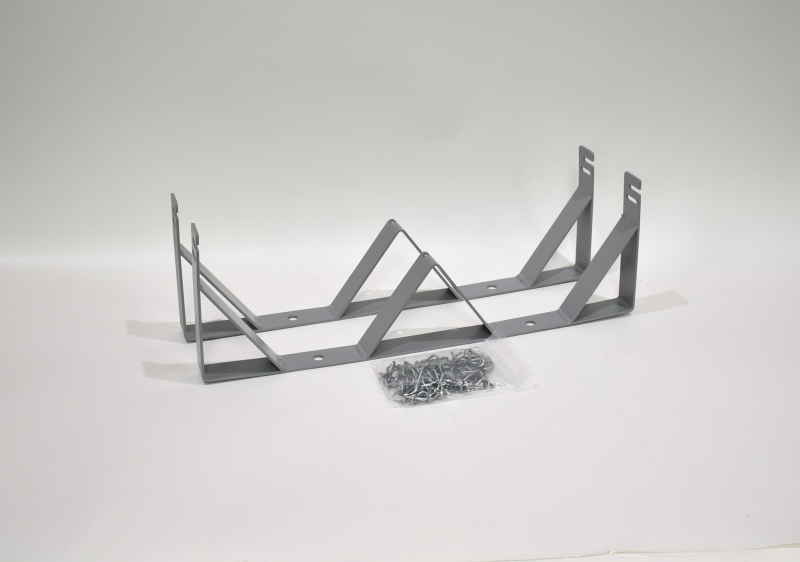

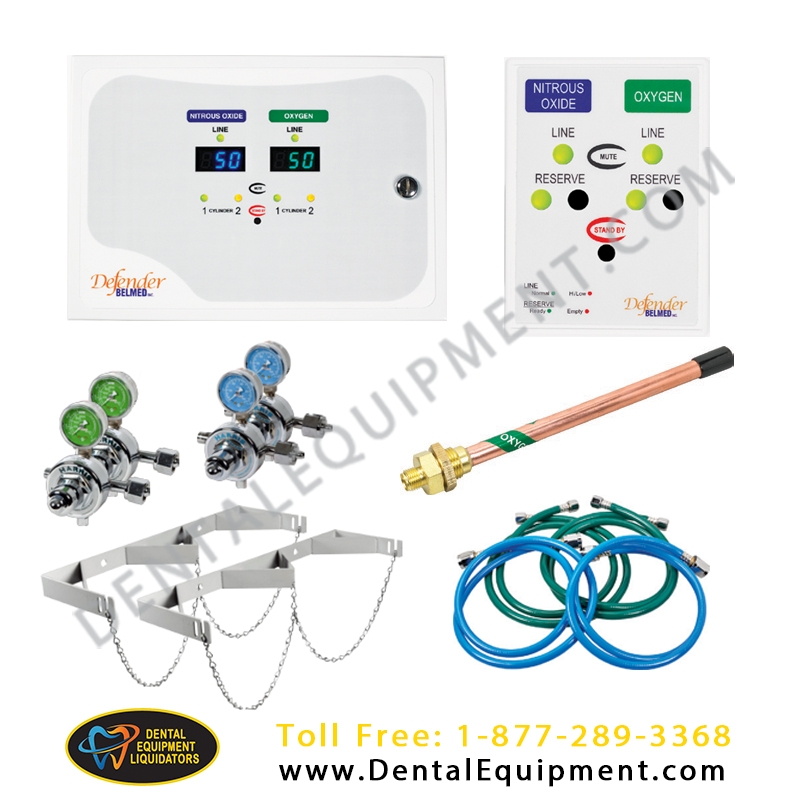

A100 Defender Manifold System with Wall Alarm Includes: Automatic Changeover Manifold, Alarm, Regulators, Hoses, Cylinderr/Tank Restraints, and Pre-Install Kit

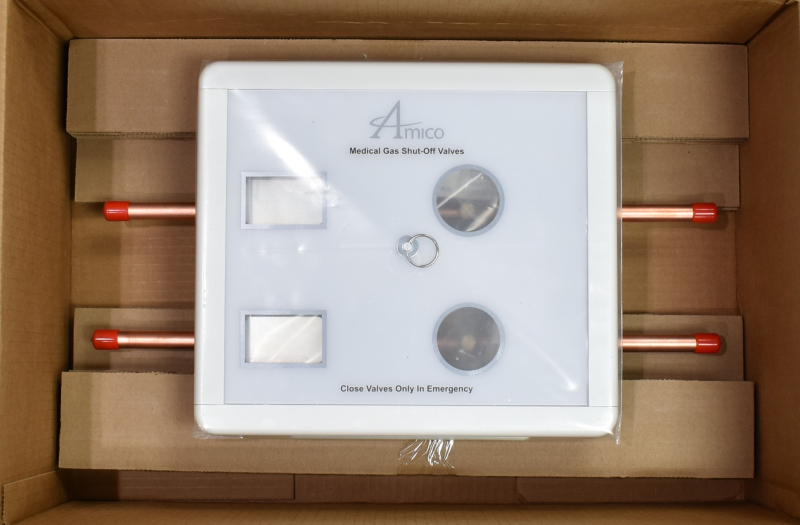

A150 Defender Zone Valve Shut-Off Includes: Zone Valve for Defender Automatic Changeover Manifild

Dimensions: 15”H x 12”W x 4”D

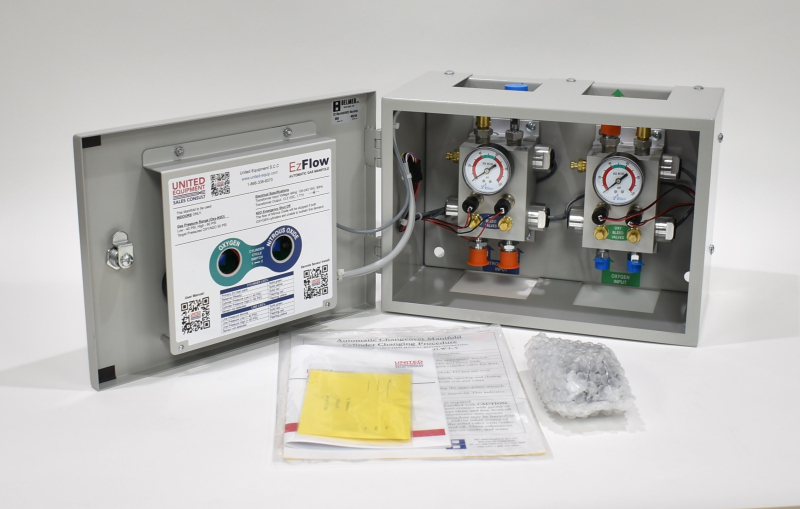

• Manifold System Dimensions 11.5”H x 9.25”W x 3”D

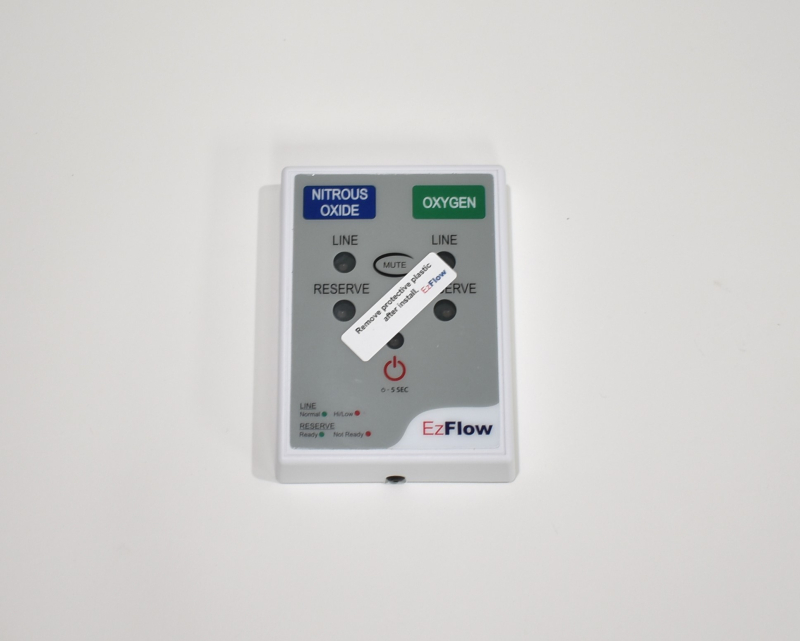

• Alarm Size Wall • 5”H x 7”W x 0.75”D
• Relief Valve Pressure 75 PSI
• Normal Working Pressure 50-55 PSI
• Maximum Hose Pressure 250 PSI (1000 PSI BURST)
• Hose Length 48”
• Outlet Line Size Oxygen: 1 /2” OD Copper Nitrous Oxide: 3 /8” OD Copper
• Low Pressure Alarm Point 40 PSI
• High Pressure Alarm Point 65 PSI
• Primary Voltage to Alarm 12 VAC
• Wire Manifold to Alarm: 50’ • 5 Conductor/22 GA. Plenum Transformer to Alarm: 30’ • 2 Conductor/22 GA. Plenum
• Fuse 5mm X 20mm - 0.5 AMP
• NFPA 99 Category 3 Compliant
