Belmont BELRAY 096 Intra Oral X-Ray System *Refurbished*

SKU: 55
Stock: 4
Warranty: 1 Year Parts, 90 Days Labor
Price: $3,795.00

Qty: - +

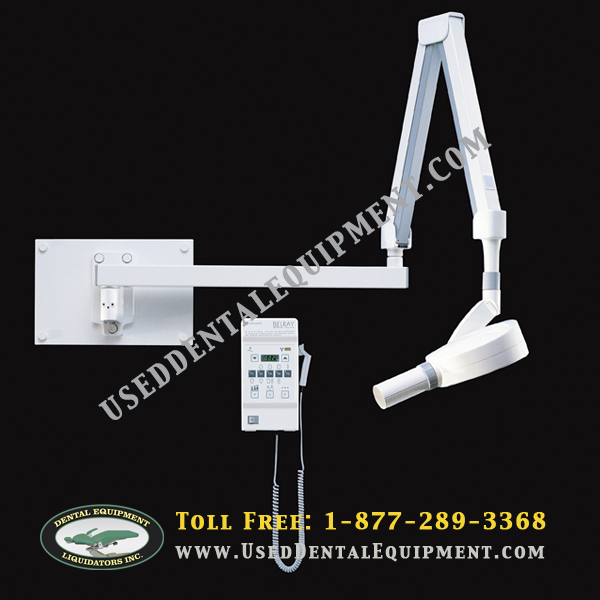

Wall Mount Belmont 096 Dental X-Ray

Compatible with most digital imaging radiographic systems; the exposure can be set as low as 0.02 sec., the equivalent of 1.2 impulses.

Profile and line-of-site accurate alignment results in reproducible, high contrast, crisp radiographs with excellent image quality. The optional long cone is used for the paralleling film.

Pass-thru mount will place the x-ray head in the exact location to take x-rays in adjacent rooms.

Microprocessor selects the optimal exposure time based on patient and film type cone length, and tooth to be radiographed.

The manual mode will personalize the film density for you; there are 58 density settings between 0.02 sec. and 3.0 sec.

The control is mounted seperately from the arm/head for in-room or remote mounting and to simplify pass-thru installations.

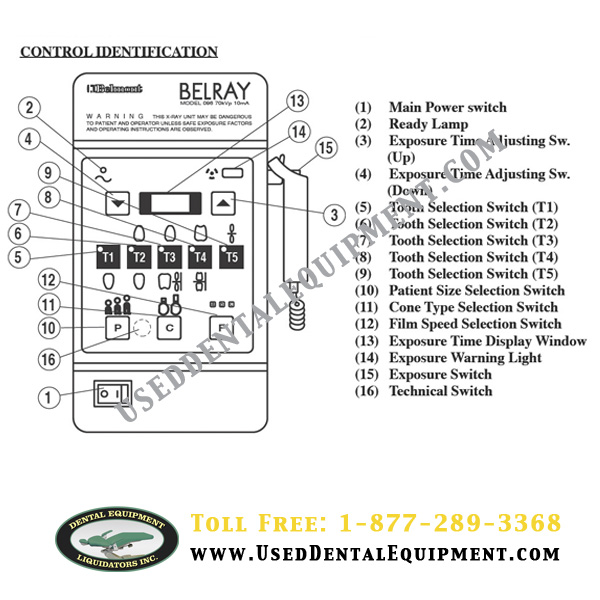

Separate microprocessor control box with patient type, tooth type, cone type, film speed and exposure time selection switches

Compatible with most digital radiographic systems

70kV, 10mA

0.8mm x 0.8mm focal spot

0.02-3.0 second exposure time

8 inch Cone length

31.5 inch Horizontal arm

Wall mounting plate

Painted in Gloss White

Great Unit For Pass Through Applications

*Ships on a Small Pallet
